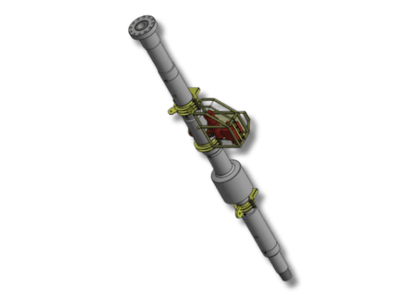

PowerXFlow 500 Ton Surface Test Tree
PowerXFlow DetailThe PowerXFlow by Superior Performance Inc. is your tool for subsea completions, workovers and P&A campaigns. It is designed for non-flowback operations, as well as easy, quick and safe rig up.

The PowerXFlow is versatile and easy to handle. It is dropped-objects tested and certified and easily transported.


FEATURES:
  • 7 1/16" 10K API flange
  • 5.75" ID
  • 10 3/4" lift-sub with 22" elevator latch-up area
  • Key locks (2 at 180 degrees TYP)
  • 2 1/16" 10K blind flange
  • Upper master valve
  • 2 1/16" 10K actuated low torque valve
  • 1 1/16" 10K block elbow
  • 1 1/16" 10K x 2" 1502 WECO female
  • Swivel
  • Lower master safety valve

Benefits:
  • Ready for deepwater subsea completions, workovers and P&A campaigns
  • Designed for non-flowback operations
  • 10,000 psi working pressure / 5.75" ID
  • 10 3/4" lift-sub with 7 1/16" 10k Flange
  • 2" plug valve hydraulic actuated 2 1/16" 10,000 psi working pressure
  • Ball valves 5.75" I.D.
  • Swivel for quick and easy rig up
  • Dropped-objects certified
  • Hydraulic panel
  • Designed for easy, quick and safe rig up
  • Load tested to 800,000 pounds with 10,000 psi. Axial load 1 million pounds

Click here to download a PowerXFlow brochure.
